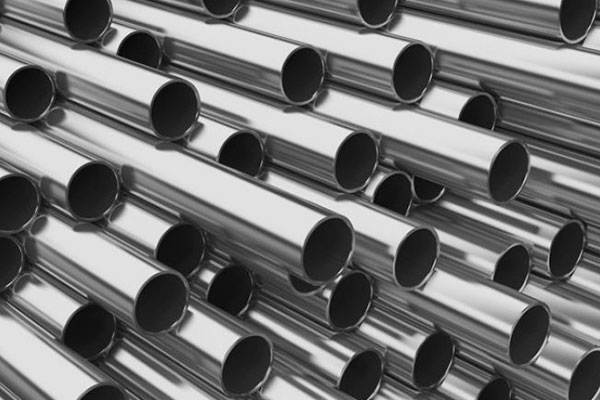

Duplex 2205 Pipe & Fittings

Duplex 2205 stainless steel Pipe & Fittings

Duplex 2205 stainless steel (UNS S31803) is resistant to chlorides and H2S. Is a problem solver in most industry segments. Duplex 2205 is utilized in heat exchangers and piping in oil and gas, oil refinery, chemical, and petrochemical industries.

Duplex 2205 Stainless Steel Pipe & Fittings

The design strength of Duplex 2205 is significantly higher than 316/316L, often permitting lighter wall construction. Duplex 2205 has good notch impact toughness down to temperatures below 40°F. Duplex 2205 is welded with E2209 or ER2209 fillers.

Duplex 2205 stainless steel exhibits excellent corrosion resistance, much higher than that of grade 316. It resists localized corrosion types like intergranular, crevice and pitting. The CPT of this type of stainless steel is around 35°C. This grade is resistant to chloride stress corrosion cracking (SCC) at temperatures of 150°C. Duplex 2205 stainless steels are apt replacements for austenitic grades, especially in premature failure environments and marine environments.

The high oxidation resistance property of Duplex 2205 is marred by its embrittlement above 300°C. This embrittlement can be modified by a full solution annealing treatment. This grade performs well at temperatures below 300°C.

The best-suited heat treatment for this grade is solution treatment (annealing), between 1020 – 1100°C, followed by rapid cooling. Duplex 2205 can be work hardened but cannot be hardened by thermal methods.

The machinability of this grade is low due to its high strength. The cutting speeds are almost 20% lower than that of grade 304. The fabrication of this grade is also affected by its strength. Bending and forming of this grade requires equipment with larger capacity. Ductility of Duplex 2205 is lesser than austenitic grades; therefore, cold heading is not possible on this grade. In order to carry out cold heading operations on this grade, intermediate annealing should be carried out.

Some of the typical applications of duplex steel Duplex 2205 are oil and gas exploration, processing equipment, transport, storage and chemical process, high chloride and marine environments, paper machines, liquor tanks, and pulp and paper digesters.

Share this product with a co-worker or friend!

Alloy 600 Pipe

Alloy 200/201 Pipe & Fittings

Nickel 200 (UNS  NO2200) is commercially pure (99.6%) wrought nickel. It has excellent mechanical properties and is highly resistant in myriad corrosive environments. Both Nickel 200 and 201 are approved for construction of pressure vessels and components under ASME Boiler and Pressure Vessel Code Section VIII, Division 1. Nickel 200 can be used to reduce the development of passive oxide films in highly oxidative media.

Incoloy Alloy 020 Nickel-Iron-Chromium Pipe

Alloy 400 Pipe & Fittings

Monel® Alloy 400 (UNS N04400) is a solid solution Alloy that may be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments. Alloy 400 is virtually immune to chloride-ion stress corrosion cracking in typical environments.

High Nickel Alloy and Specialty Stainless Piping Material Service Center

Alloy 825 Pipe & fittings

Incoloy® Alloy 825 (UNS N08825) is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. The alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. The nickel content of Alloy 825 is sufficient for resistance to chloride-ion stress corrosion cracking.

Incoloy Alloy 020 Nickel-Iron-Chromium Pipe

Ways To Use Alloy 20 Nickel Piping

Incoloy® Alloy 20 (UNS N08020) is an austenitic nickel-iron-chromium Alloy with additions of copper and molybdenum. The nickel content makes Alloy 20 resistant to chloride-ion stress-corrosion cracking. Copper and molybdenum give resistance to reducing environments. The molybdenum content also provides good resistance to pitting and crevice corrosion.
